Automatic gate installation in Palmdale, CA
An automatic gate is a steel gate plus the parts that move it: an operator, a way in such as a keypad or remote, and sensors that stop it for people and cars. In Palmdale the choice across a driveway is a rolling gate, which the code expects to be automated, or a gate that swings in. We connect you with a licensed gate installer for the full setup, new or added to a gate you already have.
The Palmdale rule
Automated rolling gates are named in the code
Across a driveway, Palmdale's zoning code allows an automated rolling gate or a gate that opens inward, away from the street. So if your gate slides, plan on a motor. If it swings, the operator goes on the house side. PMC 17.86.040
Slide or swing operator
A slide operator is a boxy unit bolted to a concrete pad beside the opening, on the house side. A chain or gear along the gate pulls it open and shut, and the gate needs clear room to travel along the wall. A swing operator is an arm that runs from the post to the leaf. Mount it on the house side and it pushes the leaf inward, which is the direction Palmdale requires. Double swing gates get one arm per leaf. The gate's weight and width decide how heavy an operator it needs.

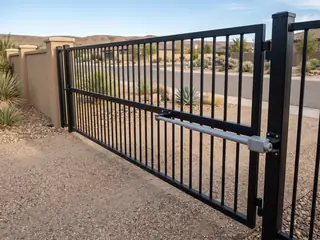

Swing arm on the house side
Getting in: keypad and call box

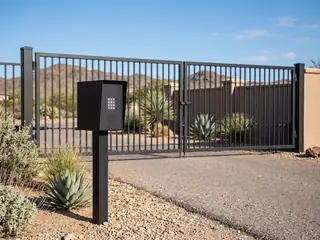

Most homes use remotes in the car plus a keypad for guests and deliveries. A call box adds a speaker so visitors can ring the house. Put the pedestal where a driver can reach it from the window without blocking the street. On lots of 20,000 sq ft or more that fits naturally, since Palmdale sets vehicle gates at least 20 ft back from the property line, leaving room for a car to wait on the drive. The 20 ft line is written for those big lots only. On a smaller lot with a short drive, a car may sit partly in the street while the gate opens, so a remote you can press early, or a quicker operator, makes daily use easier.
Safety sensors

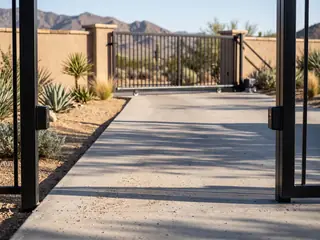

Photo eyes sit on each side of the opening and send a beam across it. If a child, a dog or a car breaks the beam, the gate stops or reverses. On a heavy gate that moves by itself they matter, and they need to line up and stay clean to work. Some setups add edge sensors on the gate or a loop in the drive that tells the gate a car is there. Ask the installer which ones your layout needs.
Solar power

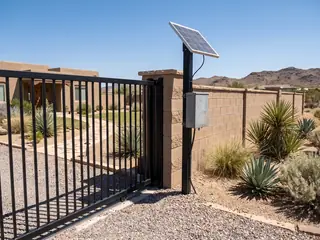

A long drive with no power near the gate is the classic case for solar. A small panel on a pole charges a battery that runs the operator, so there's no trench back to the house. Ask whether your gate's weight and how often it opens suit solar, or call for a wired circuit. National cost guides put solar opener kits around $500 to $2,000 for materials.
Wired power and the permit question
A wired operator needs a circuit run out to the gate, often in a trench. One national cost guide puts electrical trenching for automatic gates at $300 to $800. On permits, the city's Building and Safety FAQ lists electrical upgrades among work that needs a permit, but no city page names gate openers. So check with Palmdale Building and Safety at 661-267-5353 before new wiring goes in. Every fence and wall also needs Planning approval, whatever its height.
Automating the gate you already have
Plenty of steel gates can take an operator, and it's a common part of residential gate installation in Palmdale. National cost guides put that at about $400 to $5,500, depending on the gate and the opener. The gate has to be sound first: level, swinging freely on good hinges, or rolling smoothly on its track. One Palmdale catch. A driveway gate that swings out toward the street doesn't fit the current code, so adding a motor to it isn't the fix. Ask the installer about rehanging it to swing in, or switching to a rolling gate.
Fire access, gated streets and wind
A gate across a road that LA County Fire treats as a fire apparatus access road picks up extra rules from its fire code. Electric gates need a way for fire crews to open them, approved by the fire code official. Operators must be listed to UL 325, the standard for gate operators, and automatic gates must meet ASTM F2200. That text may change with the 2025 edition, so confirm with LA County Fire. Its advice to homeowners is simpler: locked or electric gates should have a disconnect or a lock box. Gated communities in Palmdale also need a key access system for fire and sheriff, covered in our guide to gated community gate access.
Wind is part of the design too. In 2024 the Palmdale airport station recorded a gust of 40 mph or more on 38 days; the strongest was 53 mph. Ask how the operator is sized for your gate's weight and width.
What it tends to cost
Full cost pageNational cost guides, not Palmdale prices.
Questions about automatic gates in Palmdale
What does an automatic gate cost, on average?
National cost guides mostly land between $2,500 and $6,000 for a standard automatic driveway gate with installation, and one puts its average near $4,000. Intercoms, cameras and heavy custom gates can take it to $8,000 to $12,000. None of the guides publishes a Palmdale price, so the installer's number after seeing the drive is the one to plan around.
Does an automatic gate need a permit in Palmdale?
Palmdale requires Planning approval for every fence and wall, and a building permit over 6 ft. No city page says whether an opener's wiring needs an electrical permit, so ask Building and Safety before work starts. Where a gate spans a fire apparatus access road, LA County Fire has to approve the gate and its emergency opening too.
What are the downsides of automatic gates?
More parts to maintain: the operator, sensors, remotes and a battery. They need power, so a wired run or a solar panel. National cost guides put most automatic gate repairs at $500 to $1,500. And someone has to plan for emergencies, with a manual release for power cuts and a way for fire crews to get through.
What does an electric gate cost?
If you already have a sound gate, national cost guides put adding an opener at about $400 to $5,500 installed. Solar kits run about $500 to $2,000 in materials, and a keypad about $250 to $650. A new gate and opener together is the $2,500 to $6,000 bracket for a typical job. Width and weight drive the operator price most.
